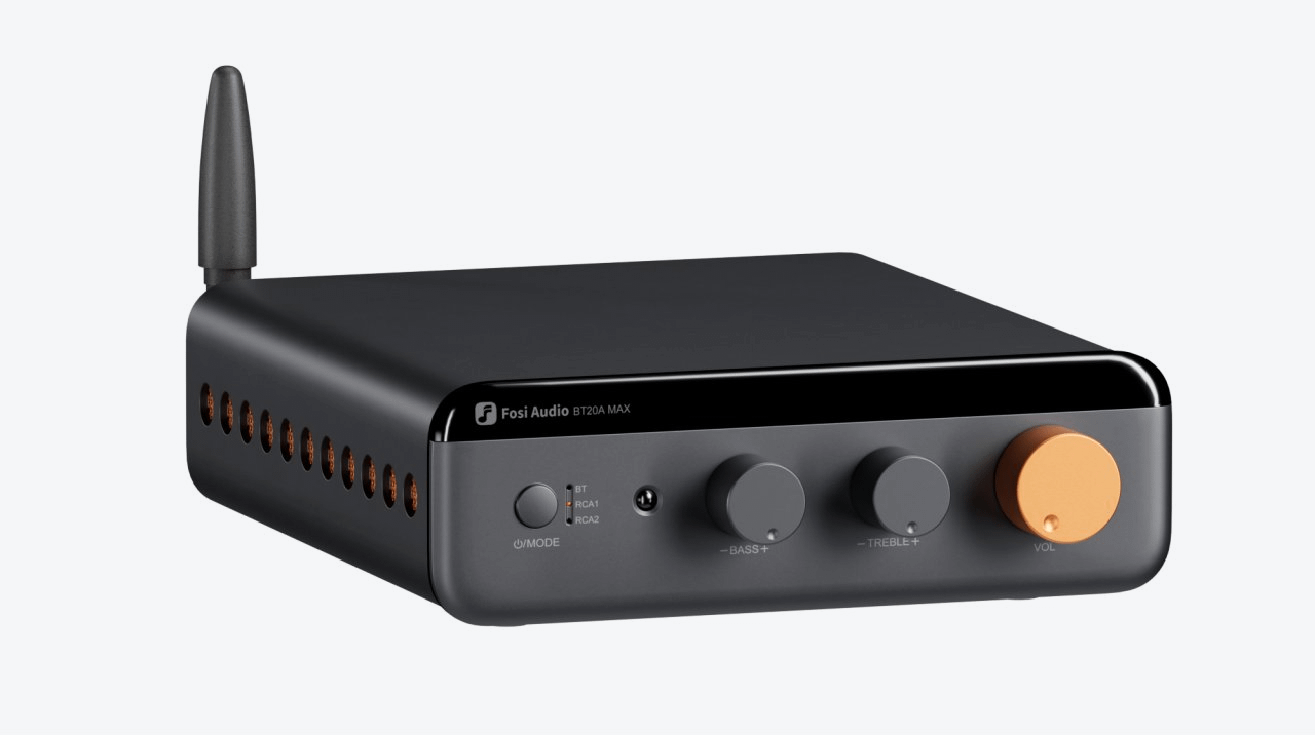

If you're putting together a compact audio setup, whether it’s on your desk, bookshelf, or tucked under the TV, chances are you don’t want to deal with a bulky receiver. That’s where the Fosi Audio BT20A MAX comes in. It’s a stereo amplifier that keeps things small on the outside but offers a surprisingly wide set of features and enough power to drive a full Hi-Fi or 2.1 system.
It follows up on two earlier models—the BT20A ($79.99 at Amazon) and BT20A Pro ($109.99 at Amazon)—but adds improvements in both design and connectivity. For folks who want to stream music wirelessly, plug in a turntable or DAC, or connect a subwoofer, this little amp covers all the bases.
Bluetooth is front and center on the BT20A MAX. It uses Qualcomm’s QCC3095 chip, which supports a bunch of higher-end Bluetooth audio formats, like LDAC, aptX HD, and aptX Lossless, in addition to the more common SBC and AAC.
What does that mean for you? Basically, if you’re streaming music from a modern phone, tablet, or computer, you’re getting much better audio quality than standard Bluetooth. And with a wireless range of up to 15 meters, you’re not tethered to your gear, ideal for both living rooms and desktops.

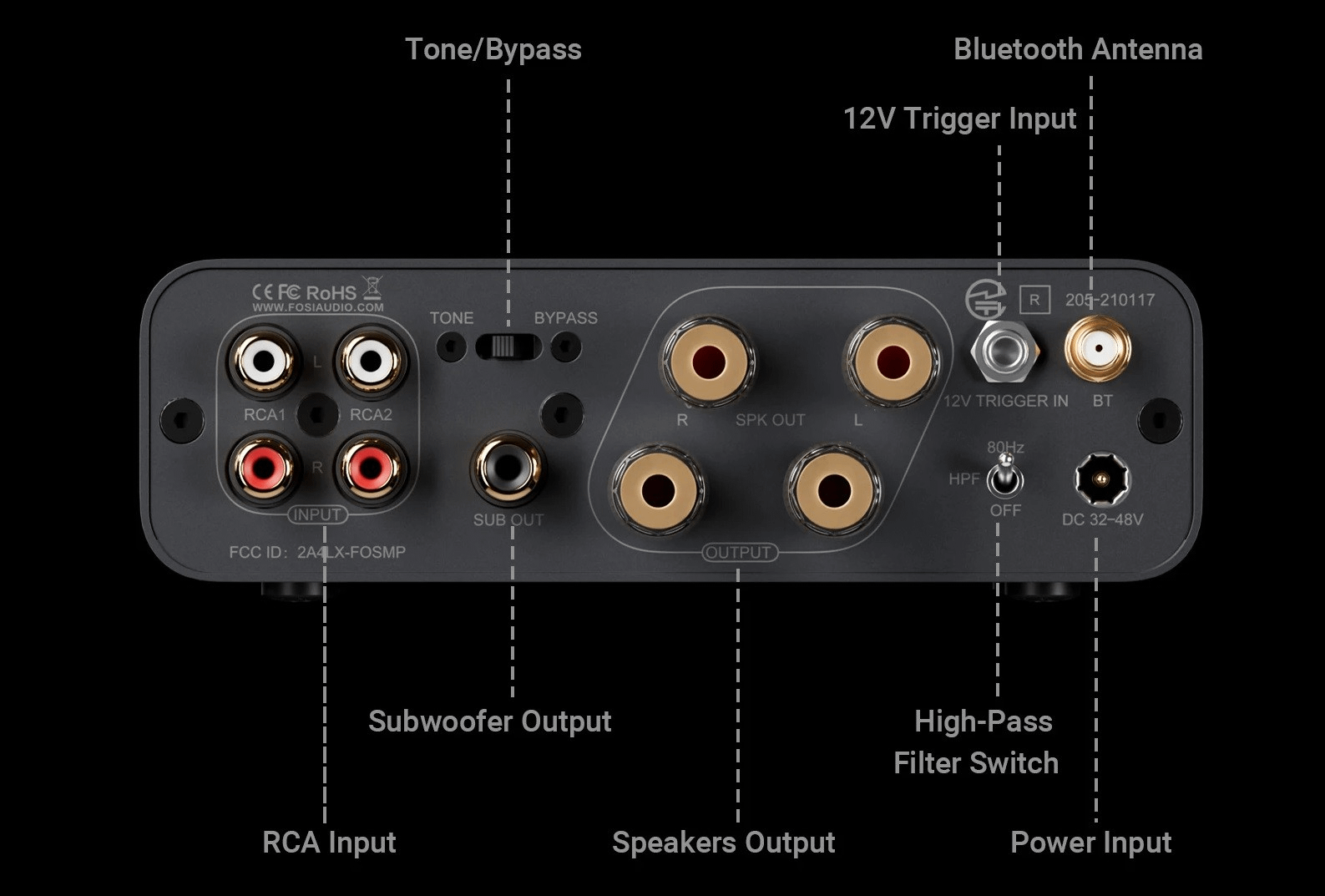

Even though it’s wireless-friendly, the BT20A MAX isn’t just for Bluetooth users. Around back, you get two RCA inputs for wired connections, so you can hook up a CD player, DAC, or even a turntable (as long as it has a phono preamp).
There’s also a subwoofer output, which makes this amp a solid pick for 2.1 setups. That means you can run a pair of passive speakers and a powered sub without needing a separate receiver or crossover.
You also get tone controls for adjusting bass and treble, along with an EQ bypass switch if you want to hear the signal without any added shaping.

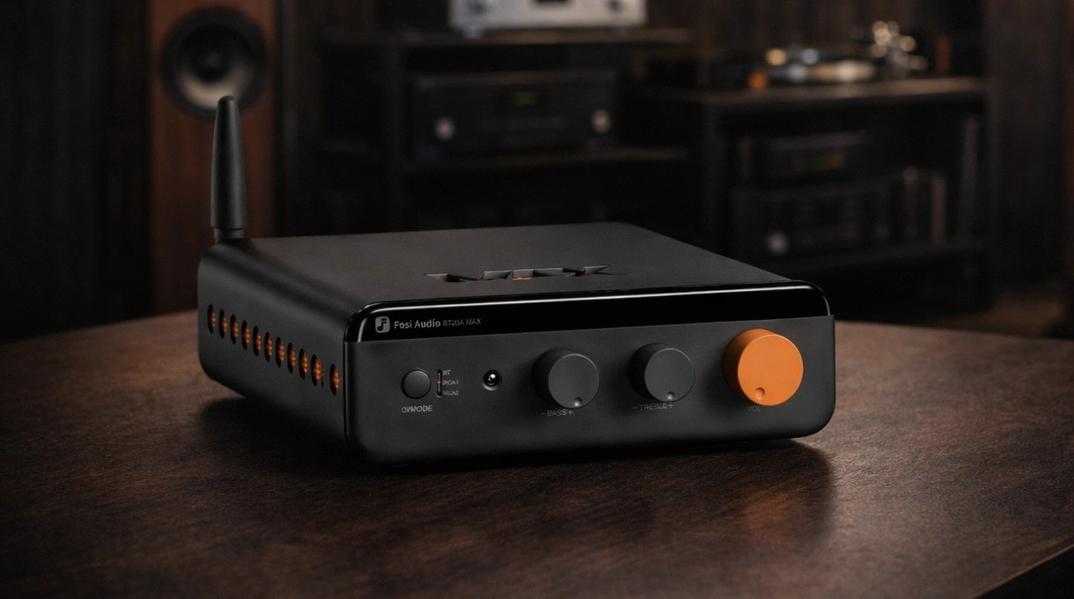

The BT20A MAX is small, it measures about 6 x 5.5 x 1.8 inches, but don’t let the size fool you. Inside is a Class D amplifier chip from Texas Instruments (the TPA3255, for the spec-curious) that can deliver up to 300 watts per channel at peak, or about 180 watts RMS into 4-ohm speakers.
That’s more than enough to drive most bookshelf or even some floorstanding speakers. It’s also stable across a range of speaker types—from 2 to 8 ohms—so you’re not limited to one specific kind of setup.
The amp is powered by an external supply (between 32V and 48V), which gives it the flexibility to scale power based on your needs.
Internally, the BT20A MAX separates the digital and analog power supplies. That helps reduce interference between components, one of the reasons why audio quality stays clean even when things get loud.
Fosi also uses ELNA capacitors in the signal path, a component choice that’s often found in higher-end audio gear to improve stability and reduce unwanted noise.
Heat management gets some attention too. Instead of relying on passive cooling alone, this amp has a low-noise fan and vents on the top and sides to keep temperatures in check. That’s a bit unusual in this size category but useful if you’re pushing the amp for long listening sessions.
On the front panel, you’ll find a motorized analog volume knob, bass and treble dials, an EQ switch, and an input selector. These controls are straightforward and easy to use.

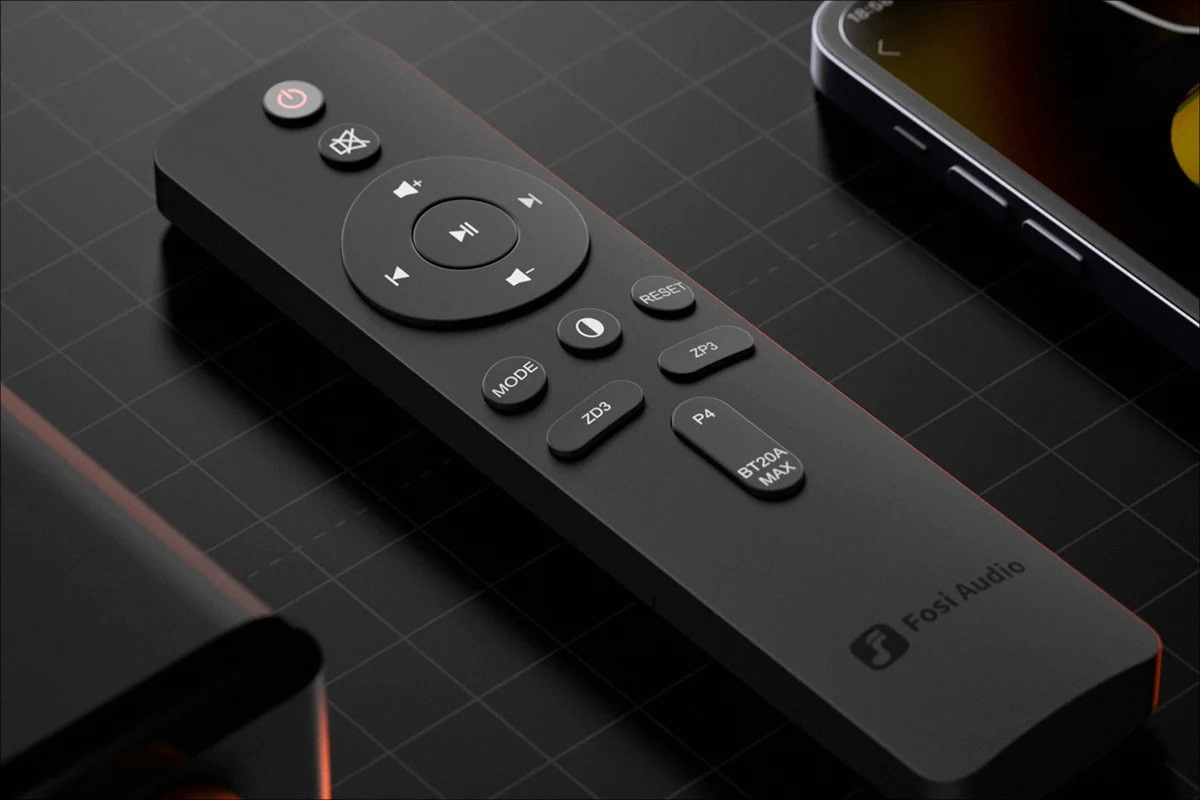

The amp also comes with a remote, which is handy if you place it on a shelf or cabinet. It gives you control over volume and input without needing to reach for the unit every time.
If you want to run a 2.1 system (two speakers and a sub), the BT20A MAX makes it easy. Just connect your subwoofer using the dedicated output and set the high-pass filter for your speakers. That filter cuts off lower frequencies from the main speakers, so they’re not competing with the sub, which can help tighten up the overall sound.
This makes it a good option not just for music, but also for gaming, movies, or casual TV listening.
Technical Specifications:
If you're trying to decide between Fosi Audio's BT20A lineup, the table below breaks down the key differences between the original BT20A, the Pro version, and the latest BT20A MAX. The most important things to look for are the channel support, Bluetooth chipset, and power output. While all three amps are compact stereo units, only the BT20A MAX supports a 2.1 setup with a dedicated subwoofer output. That makes it more suitable for users who want to add low-end reinforcement without extra gear.
You’ll also notice the BT20A MAX pulls ahead in wireless audio performance and signal clarity. Thanks to the Qualcomm QCC3095 chip, it supports newer Bluetooth codecs like LDAC and aptX Lossless, which aren’t available on the earlier models.
On the performance side, it matches the BT20A Pro in wattage but improves signal-to-noise ratio and distortion specs even further. The bottom row highlights additional features like remote control and a high-pass filter—useful upgrades that round out the BT20A MAX as the most versatile option of the three.
| Feature | BT20A | BT20A Pro | BT20A MAX |
|---|---|---|---|
| Release Date | 2020 | 2023 | 2025 |
| Channels | 2.0 | 2.0 | 2.0 / 2.1 |
| Bluetooth Chip | ATS2853 | ATS2853 | Qualcomm QCC3095 |
| Max Output Power | 100W × 2 | 300W × 2 @ 4Ω | 300W × 2 @ 4Ω |
| Subwoofer Output | ✗ | ✗ | ✓ |
| Signal-to-Noise Ratio (SNR) | ≥ 98 dB | ≥ 108 dB | ≥ 112 dB |
| Total Harmonic Distortion + Noise (THD+N) | ≤ 0.5% | < 0.005% | ≤ 0.003% |
| Bluetooth Version / Codecs | 5.0: SBC, AAC | 5.0: SBC, AAC | 6.0: SBC, AAC, aptX, aptX HD, aptX Adaptive, aptX Lossless, LDAC |
| Extra Features | – | – | Remote, High-Pass Filter, Bypass, PFFB, 12V Trigger, Motorized Potentiometer |
| Price | $79.99 at Amazon | $109.99 at Amazon | $229.99 |
The Fosi Audio BT20A MAX sits in a sweet spot for people who want strong audio performance, flexible connectivity, and a compact design. It’s especially appealing if you're building a desktop setup, adding power to your living room speakers, or putting together a 2.1 system without going full home theater.
At $229.99, it offers a lot of versatility in a small box—Bluetooth 6.0, support for high-res codecs, subwoofer integration, and enough wattage to drive most speakers comfortably.
It won’t replace a full receiver if you need surround sound, but for stereo and 2.1 setups, it’s an easy amp to drop into your system and get going, without taking up much space.
