Not all audio upgrades involve swapping speakers or amps. Sometimes, it's the quiet parts of the chain—like how your USB signal gets handed off—that can make the biggest difference. The Gustard U26 is a purpose-built USB digital interface that handles that job, offering adjustable USB settings, isolated power rails, and high-stability clocks to keep things precise from the first bit to the last. And it’s available now on Amazon for $999.

What does the Gustard U26 actually do? In practical terms, the U26 takes a USB signal from your source device (typically a computer or streamer) and converts it into one of several other digital formats—like I²S over HDMI, AES/EBU, coaxial, BNC, or optical. Why would you want this? Because many high-end DACs perform better when fed a digital signal that doesn't come directly from a USB port. USB, while convenient, can introduce electrical noise and jitter into the signal path, especially in noisy environments like desktop PC setups.

By isolating the USB input and reformatting it with higher-quality timing and reduced interference, the U26 aims to give your DAC a cleaner, more stable signal to work with.

The U26 is ready for just about anything you can throw at it in terms of digital audio formats. It supports PCM audio up to 32-bit/1.536MHz and DSD up to DSD2048 natively (or DSD512 via DoP). That means everything from standard CD-quality rips to studio-grade high-res audio masters is fair game. Whether you’re running FLAC, WAV, or DSD from your local library or a streaming service with high-resolution output, the U26 acts as a transparent pass-through, without trying to alter or color the signal.

At the heart of the U26 is a USB engine developed in partnership with Amanero Technologies, running on a custom ARM Cortex-M7 processor. This gives the unit real-time signal processing and ultra-low latency. There’s even an ASIO driver available for those who want to tweak performance further—things like buffer size, latency, and clock alignment, especially useful for pro audio users or digital tinkerers who like to dial in their settings.

A big part of what sets the U26 apart is its approach to clocking. It includes an oven-controlled crystal oscillator (OCXO) paired with Gustard’s K2 PLL system. These generate two separate ultra-low-jitter clocks (98.3040MHz and 90.3168MHz), and they’re designed to keep timing tight and stable. In digital audio, accurate timing reduces jitter—which can cause harshness or smear detail in playback—so this kind of implementation is especially important for systems where timing precision matters.

And it doesn’t stop there. Gustard also includes a CPLD (programmable logic chip) that reshapes I²S signals after isolation, helping to maintain a consistent digital waveform before the signal even hits your DAC.

To block unwanted electrical noise from your computer or streamer, the U26 uses a 200Mbps USB isolation chip. That’s a crucial feature in digital audio chains, where noisy USB connections can sometimes cause subtle but noticeable degradation in audio quality.

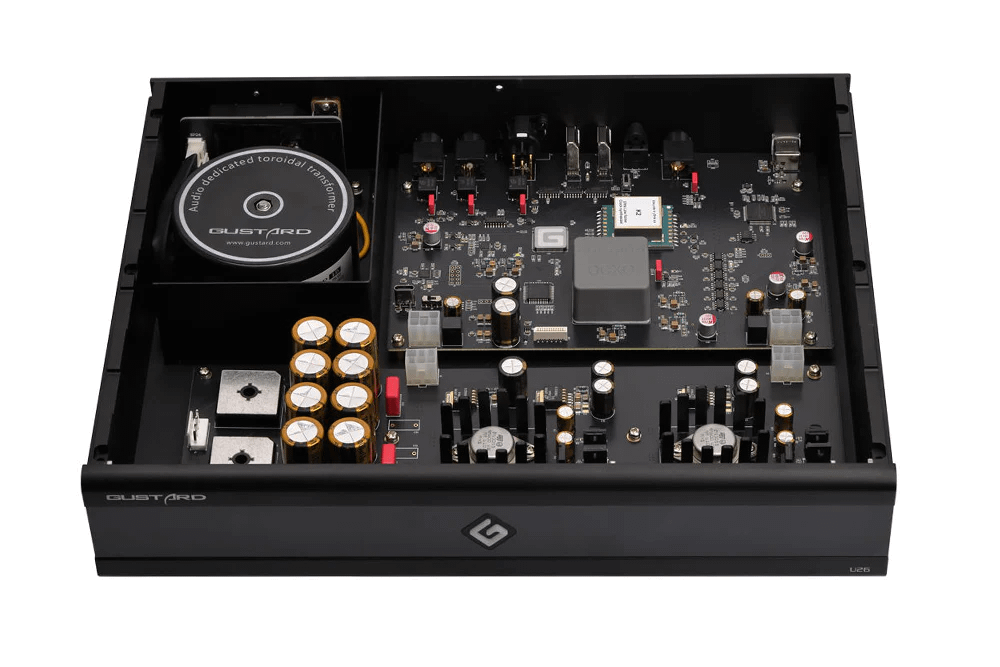

Inside the chassis, the U26 runs on a fully isolated power architecture with a toroidal transformer, dual rectifier bridges, and discrete power regulation. It even separates the power supply rails for USB and digital circuits—one of those “under the hood” touches that may not be flashy but helps ensure consistent performance. The capacitors add up to 80,000µF in total capacity, which is significant for a unit like this. Gustard is clearly aiming for stable, ripple-free power that won’t fluctuate under load.

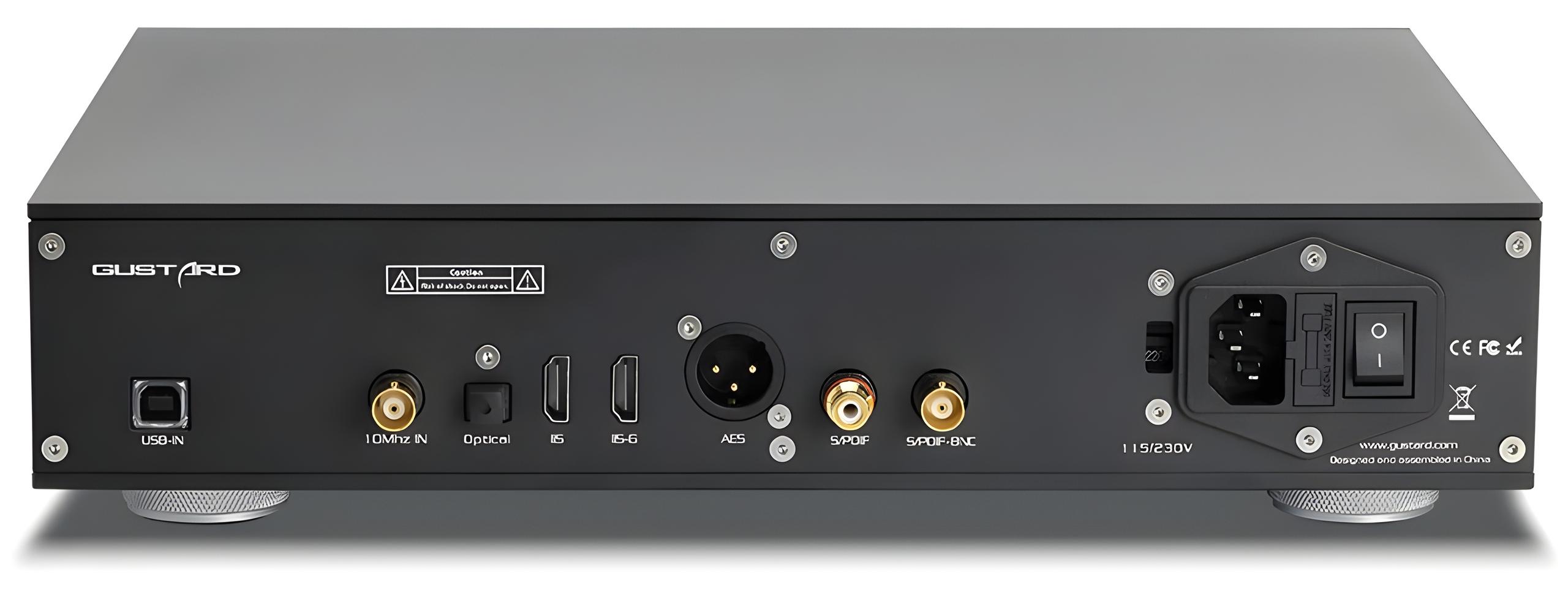

On the back panel, you’ll find a wide range of digital outputs: two I²S HDMI ports (with one offering configurable pin settings), AES/EBU, coaxial RCA, optical Toslink, and even a BNC connector. If you’re using a master clock to sync your entire digital system, there’s also a 10MHz clock input.

This flexibility makes it easy to slot the U26 into just about any digital setup, whether you’re feeding a traditional stereo DAC, an integrated amp with digital inputs, or even a powered speaker system with coaxial or optical input.

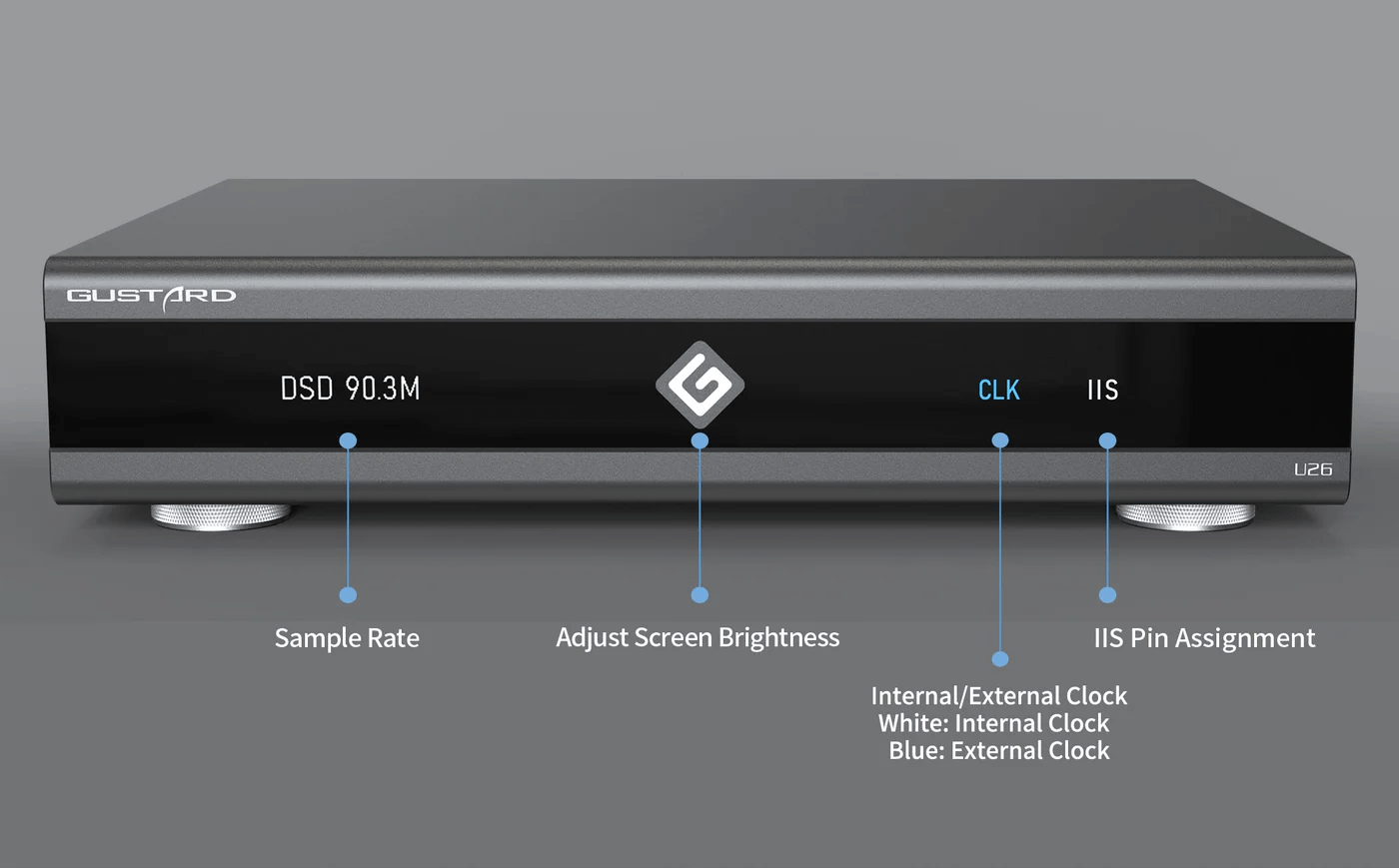

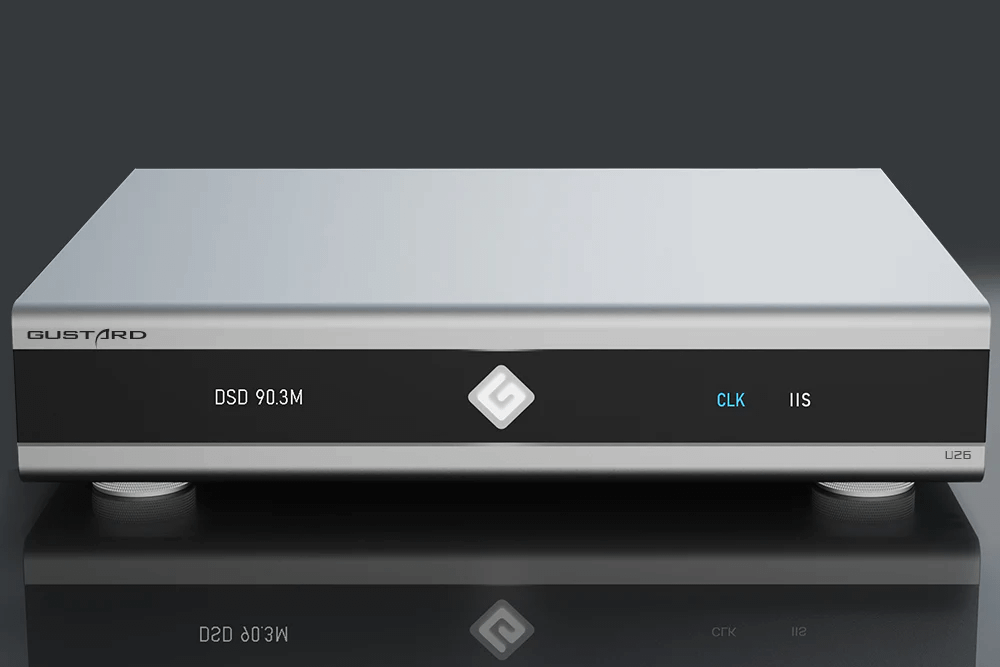

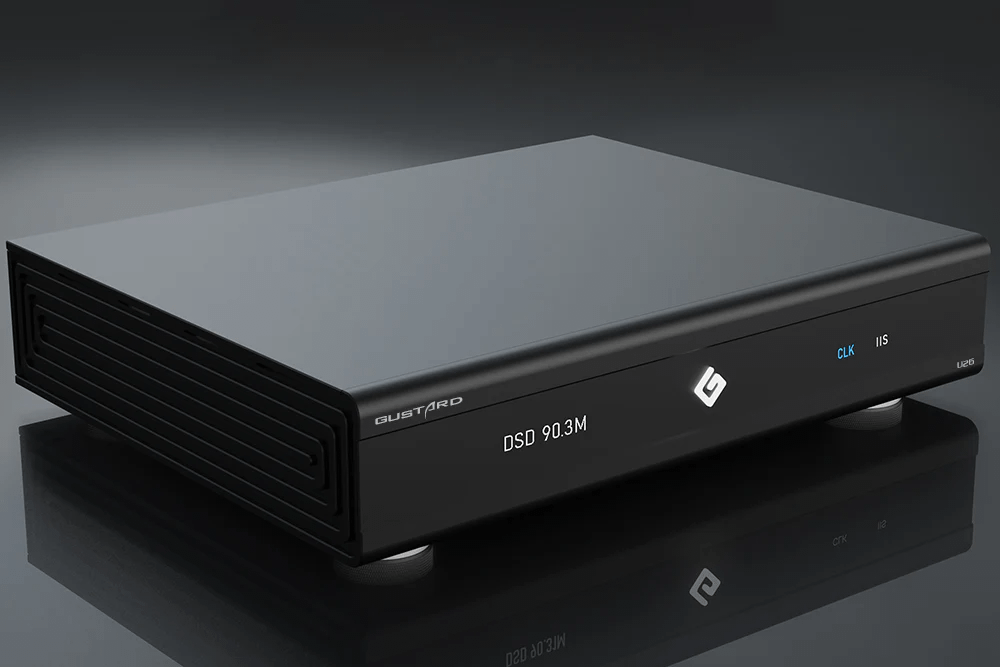

The Gustard U26 comes in a full aluminum chassis that does more than just look clean and minimalist on your rack—it also acts as a shield against electromagnetic interference (EMI). Internally, the layout keeps the power, processing, and clock sections physically separated to prevent interference between stages. It’s a straightforward, utilitarian design that prioritizes signal integrity over visual flash.

Technical Specifications:

• Digital Input (USB): USB Type-B (Female), USB 2.0 Compatible
• Digital Input (10M BNC): 50Ω Impedance, 0dBm–20dBm Input Level
• Digital Output (Coaxial): 75Ω Impedance, 500mV P-P @75Ω Load
• Coaxial PCM Support: 24-bit, 44.1kHz–384kHz / DoP64–128
• Digital Output (AES): 110Ω Impedance, 2.1V P-P @110Ω Load
• AES PCM Support: 24-bit, 44.1kHz–384kHz / DoP64–128
• Digital Output (Optical): PCM 24-bit, 44.1kHz–192kHz / DoP64
• Digital Output (I²S over HDMI): LVDS Level, PCM 32-bit 44.1kHz–1536kHz, DSD 2.82MHz–90.3MHz (DSD64–DSD2048)
• AC Power Supply: AC 115V / 230V, 50/60Hz
• Power Consumption: <15W
• Unit Dimensions: 330 × 65 × 260mm (W × H × D, excluding protrusions)
• Packaging Dimensions: 420 × 175 × 360mm
• Unit Weight: 4.8kg
• Weight with Packaging: 6.3kg

If you're building a high-performance digital system and want more control over how USB audio is handled before it hits your DAC, the Gustard U26 offers a well-thought-out approach. It doesn’t try to reinvent the wheel—it just focuses on getting the digital handoff as clean and accurate as possible.

And for those looking to upgrade their system’s digital front end, the U26 is available now on Amazon for $999.
