SVS has built its reputation on delivering subwoofers that balance brute-force low-end output with tight, accurate performance. I’ve already covered the sealed version in this series, but after spending time with the ported PB-5000 Revolution, it’s clear this is an entirely different animal. Yes, it’s bigger. Yes, it’s heavier. But more importantly—it takes everything the sealed box does well and simply outguns it in terms of sheer impact and presence.

If the sealed model is the “audiophile scalpel,” the ported PB-5000 Revolution is the “demolition hammer.” It dominates the room with authority, digging deeper, hitting harder, and giving you that cinematic chest-thump that makes home theater fun. Buy it here!

Design and Build

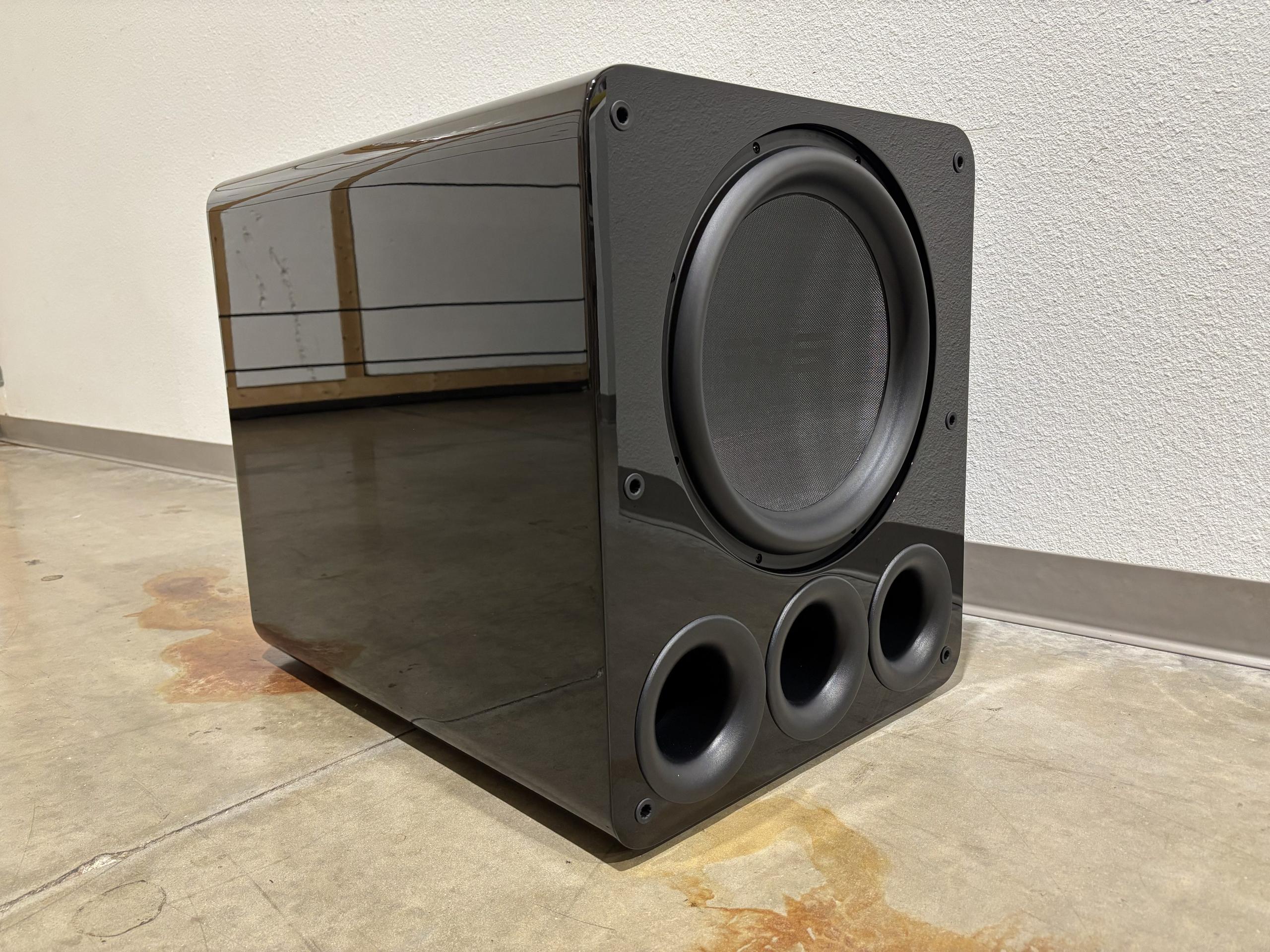

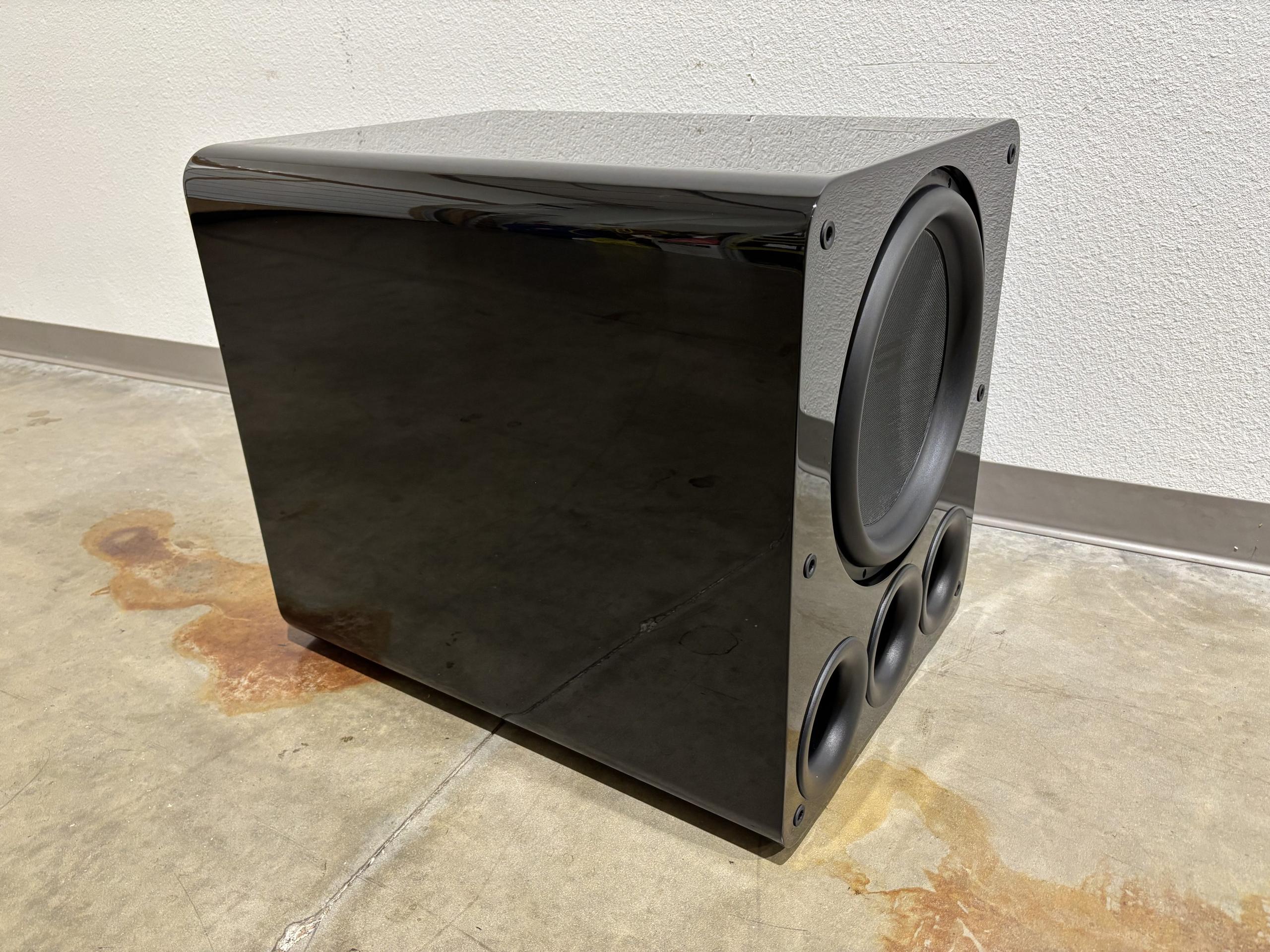

The PB-5000 Revolution isn’t shy about its size. At nearly two feet wide and close to 150 pounds, this sub is a statement piece. You’ll need to plan your space carefully, because this isn’t sliding discreetly into a corner without notice. But SVS’s design language still shines through: matte black finish, clean lines, and a purposeful, industrial vibe that fits in dedicated theaters or high-end living rooms.

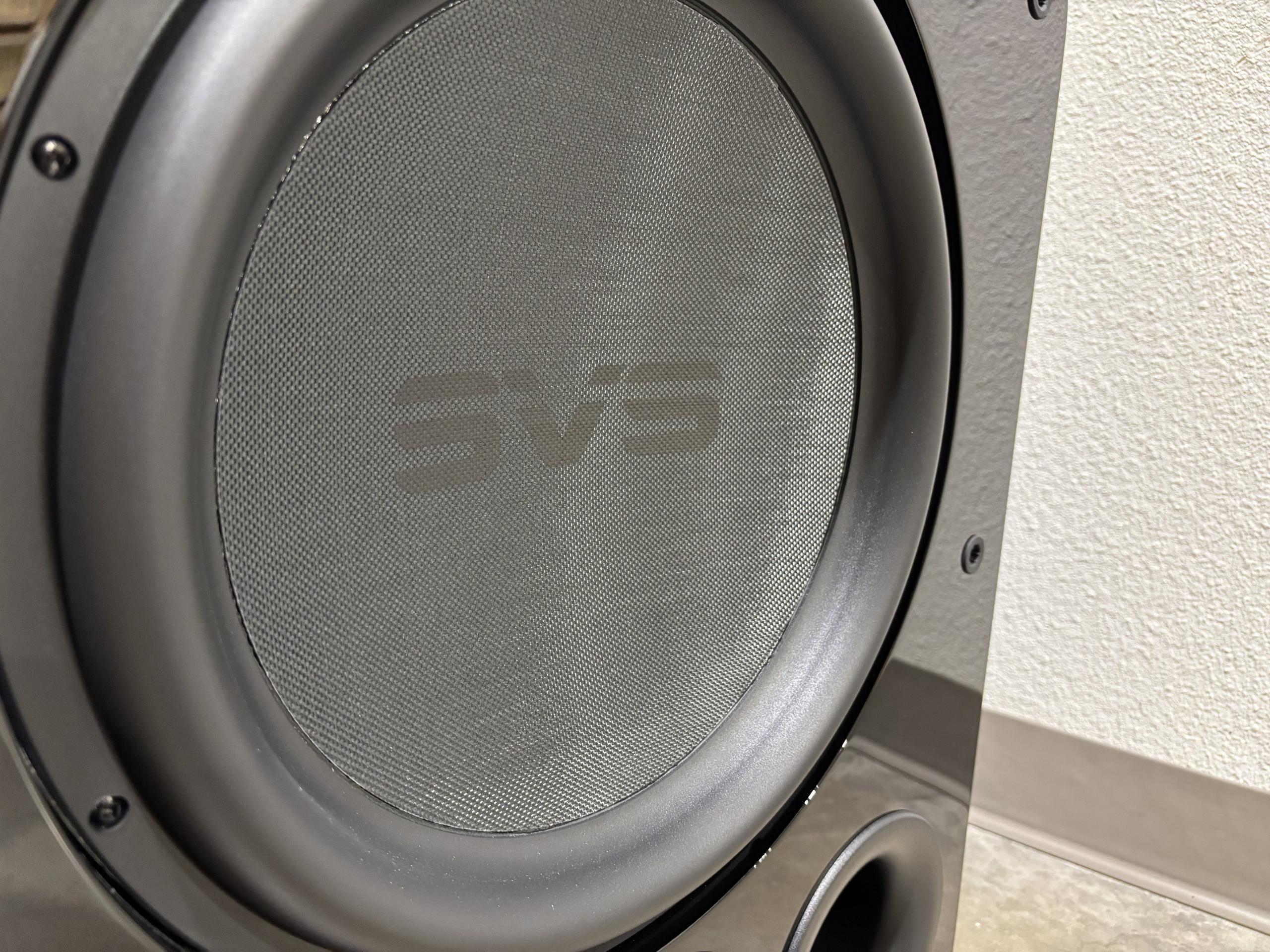

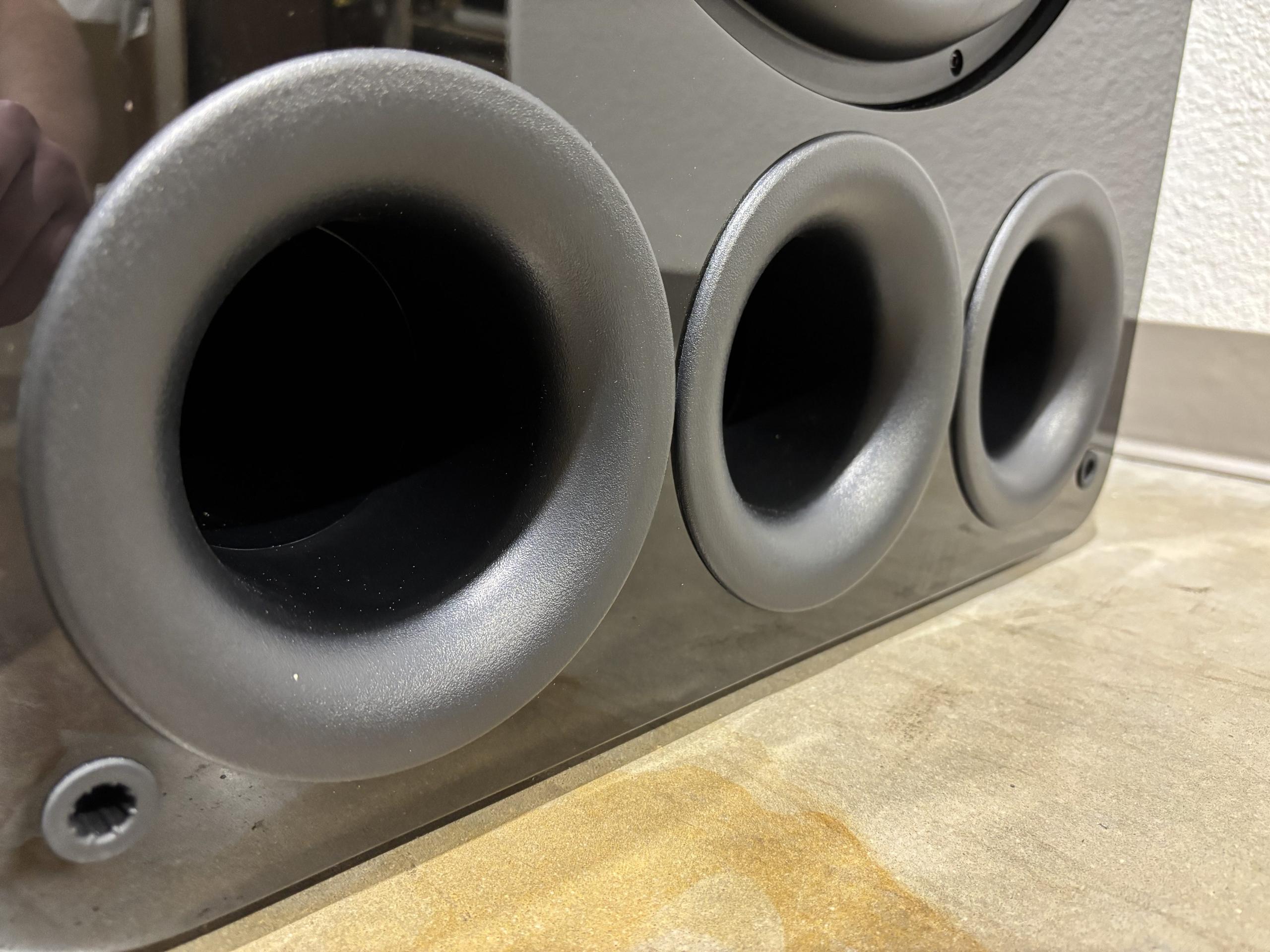

Inside the oversized cabinet sits a high-excursion driver powered by SVS’s reference-grade amplifier. The real difference is in the ported design, which uses precision-tuned vents to extend the low-frequency reach while maintaining control. The flared ports cut down on chuffing, even at high volumes, and give this beast the breathing room it needs to really flex.

And while we’re on the topic of physical design, let’s talk unboxing. I’ll be blunt—I don’t like how these subs come packaged. SVS wants you to slide the sub out the side of the box, but at 150 pounds, it’s awkward and borderline frustrating to do. Personally, I gave up and just cut the entire box open. It’s not a deal-breaker, but it’s the least enjoyable part of the ownership experience.

Performance

Here’s where the PB-5000 Revolution sets itself apart from the sealed version. Both share SVS’s driver and DSP smarts, but cabinet design fundamentally changes the experience.

• Depth & Extension: The sealed version is refined, but the PB-5000 digs deeper into the teens of hertz. You don’t just hear bass—you feel it ripple through your couch and chest.
• Impact & Slam: Explosions, kick drums, and EDM drops carry more weight and boom, filling the room with effortless authority. The sealed version punches; the ported version bulldozes.
• Room Size Match: Sealed works best in smaller spaces, but the ported version is built to pressurize large rooms without breaking a sweat.
• Control: Despite all that extra boom, it’s not sloppy. Notes remain well-defined, and SVS’s engineering keeps everything tight, even at insane volumes.

I’ll admit something: I usually lean sealed because I like fast, tight bass that blends seamlessly with music. But here’s the twist—this ported version hit me in the chest with so much raw power that I couldn’t help but prefer it. Movies came alive, and even music had that fun, stadium-concert feel. Sometimes more really is more. That's the fun part about subwoofers in home theaters!

SVS PB-5000 Revolution Specifications

• Driver: 13.5" high-excursion driver with composite cone
• Amplifier Power: 1,500 watts RMS, 4,500+ watts peak (Sledge STA-1500D with discrete MOSFET output)
• Frequency Response:
  • 16–200 Hz ±3 dB (standard mode)
  • 13–200 Hz ±3 dB (extended mode)
  • 18–200 Hz ±3 dB (sealed mode with plugs)
• Max Output (SPL): > 120 dB at 1m (depending on mode)
• Enclosure Type: Ported (dual flared front ports, adjustable with foam plugs)
• Dimensions (H × W × D): 23" × 20.5" × 30" (including grille, feet, amp)
• Weight: 147 lbs (66.7 kg)
• Finish Options: Black Ash, Piano Gloss Black

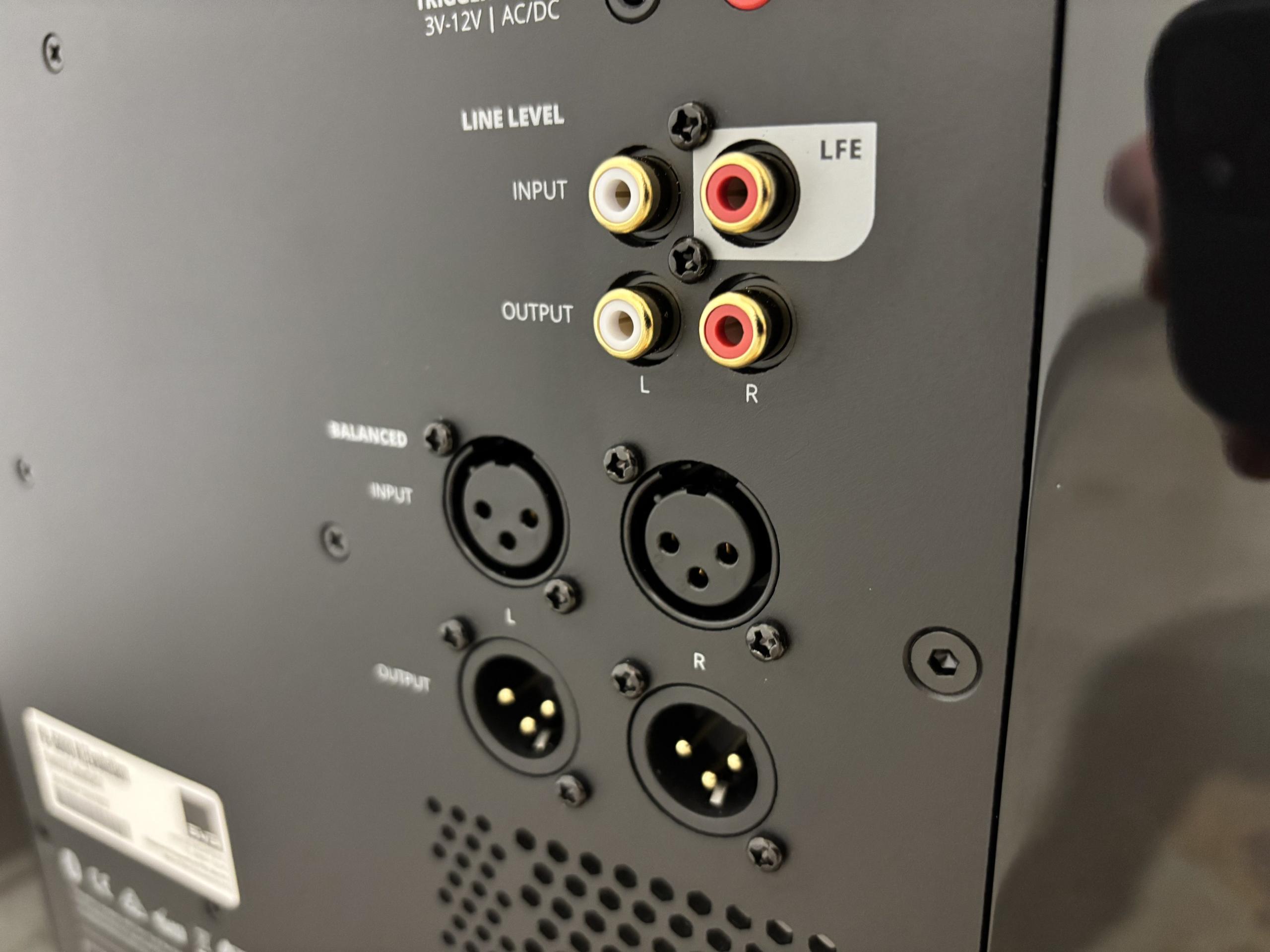

• Inputs: Stereo RCA, LFE, balanced XLR
• Outputs: Stereo RCA (for daisy-chaining)
• Control Options: Rear-panel controls + full-featured SVS Subwoofer DSP App (iOS/Android)
• Included Accessories: Removable grille, foam port plugs, heavy-duty power cord, quick start guide

Who’s It For?

• 🎬 Home Theater Enthusiasts – Want to feel every explosion in your chest? This is your sub.
• 🎶 Music Fans Who Like It Big – Concert-level slam with just enough control to stay enjoyable.
• 📐 Medium-to-Large Room Owners – Has the horsepower to energize big spaces without strain.
• ❌ Not For Small Rooms or Discreet Setups – Too large and too powerful if you want subtlety.

The SVS App Experience

One of SVS’s best features is its dedicated control app, and it feels essential with a subwoofer of this scale. Instead of crawling behind the cabinet, you can adjust volume, crossover, phase, parametric EQ, room-gain compensation, and port tuning modes right from your phone.

This isn’t just convenience—it’s accuracy. With a sub that can easily overwhelm a room, small tweaks make a huge difference. I found myself replaying the same movie scenes while making couch-side adjustments in real time. Within minutes, I had it dialed perfectly: massive impact, but balanced and controlled. The app makes the PB-5000 feel like a precision instrument, even though it’s a monster in disguise. Buy it here!

SB-5000 vs. PB-5000 R|Evolution

SB-5000 vs. PB-5000 R|Evolution — Key Specs

🟦 SB-5000 (Sealed)

• Driver: 13.5" high-excursion
• Amplifier: 1,500W RMS / 4,500+ peak (Sledge STA-1500D)
• Frequency Response: 17–270 Hz (±3 dB)
• Enclosure: Sealed acoustic suspension
• Max Output: Extremely high for sealed, ideal in small/medium rooms
• Size: ~18" × 18" × 20"
• Weight: ~92 lbs
• Control: Full SVS DSP App + rear controls
• Finishes: Black Ash, Piano Gloss Black

🟥 PB-5000 (Ported)

• Driver: 13.5" high-excursion
• Amplifier: 1,500W RMS / 4,500+ peak (Sledge STA-1500D)
• Frequency Response:
  • 13–200 Hz (Extended Mode)
  • 16–200 Hz (Standard Mode)
  • 18–200 Hz (Sealed/Plugged)
• Enclosure: Ported, dual flared front ports (adjustable with foam plugs)
• Max Output: Higher peak SPL, pressurizes large rooms with ease
• Size: ~23" × 20.5" × 30"
• Weight: ~147 lbs
• Control: Full SVS DSP App + rear controls
• Finishes: Black Ash, Piano Gloss Black

Verdict

The SVS PB-5000 Revolution is unapologetically big and bold. If you have the space and don’t mind the size, it’s the clear winner for anyone who wants to feel their home theater as much as hear it. Compared to its sealed sibling, the PB-5000 doesn’t just extend deeper—it dominates the low end, delivering reference-level bass that’s both cinematic and satisfying.

And that’s really the story here. I’ve always gravitated toward sealed subs because of their finesse and control. But the PB-5000 Revolution won me over with sheer boom and authority. It’s visceral, fun, and more exciting than I expected. From blockbuster movies to bass-heavy music, it just hits differently—harder, deeper, and with more presence.

It’s not perfect. The size is intimidating, placement can be a challenge, and I wish the unboxing experience was smoother. But once you get it out of the box and dialed in, all of those complaints fade away the first time you feel the room shake.

For home theater lovers, this is the Revolution worth joining. Buy it here!
